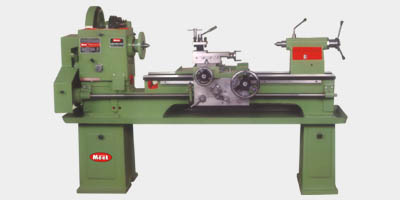

| Meduim
Duty Lathe Machine : |
|
TECHNICAL
SPECIFICATION |
Length
of Bed |
4'6"
- 5'3" - 6"- 7" Feet |
Height
of Center |
8
1/2 " (215mm) |
Maxi.
Swing Over Bed |
15"
|
Width
of Bed |
11"
(275mm) |
Length
of Gap |
6" |
| Length
of Gap in Front of Face Plate |
5" |
| Spindle
Bore |
2
1/8" (52mm) |
| Width
of Surface |
6
1/2 " (165mm) |
| Lead
Screw |
4
TPI |
| Inch
Thread |
4
to 48 TPI |
| Metric
Thread |
1
to 7 mm |
| Power
Required |
1.5
HP |
|
| Standerd
Accessories : |
| |
Chuck
Plate, Spindle Sleeve, Dead Centre, Tool Post Key
& Change Gearset |
|
