| Combi
Planer : |
|

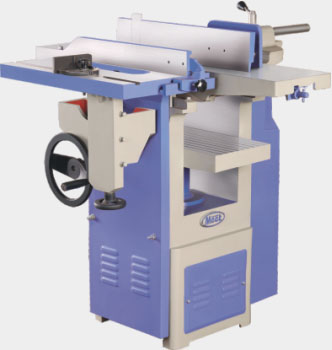

Combi Planer Ex-Type |
TECHNICAL
SPECIFICATION |
Meet Ex-Series - Fixed Top |
| Comi-Planer
Size |
10"
|
13" |
| Surfacing
Capacity |
254
/ 10" |
330
/ 13" |
| Length
of Surface Table |
1143
/ 45" |
1220
/ 48" |
| Max. Planing width |
254 / 10" |
330 / 13" |
| Thicknessing
Capacity |
177
/ 7" |
177
/ 7" |
| Length
of Thickness Table |
635
/ 25" |
685
/ 27" |
| Circular
Saw Table Size |
24"
x 14" |
24"
x 14" |
| Power
Required HP / RPM |
3
/ 1440 |
3 / 1440 |
|
| |
|

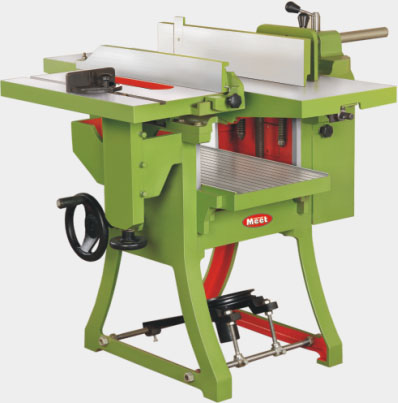

Combi Planer (Open Stand) |
TECHNICAL
SPECIFICATION |
COMBI-PLANER
(Open Stand) |
| Comi-Planer
Size |
10" |
13" |
| Surfacing
Capacity |
254
/ 10" |
330
/ 13" |
| Max.
Planing Width |
254
/ 10" |
330
/ 13" |
| Thicknessing
Capacity |
177
/ 7" |
177
/ 7" |
| Length
of Surface Table |
1140
/ 45" |
1140
/ 45" |
| Rebating
Capacity |
12.5
/ 1/2" |
12.5
/ 1/2" |
| Length
of Thickness Table |
610
/ 24" |
610
/ 24" |
| Feeding
Speed (feet per minute) |
24 |
24 |
| Cutter
Block Speed (RPM) |
4000 |
4000 |
| Circular
Saw Table Size |
24"
x 14" |
24"
x 14" |
| Up/Down
Movement of Cir. Saw Table |
75
/ 3" |
75
/ 3" |
| Max.
Circular Saw Diameter |
300
/ 12" |
300
/ 12" |
| Power
Required HP/RPM |
2
/ 1440 |
2
/ 1440 |
| Approx
Wt. of Machine |
275
Kg. |
305
Kg. |
|
